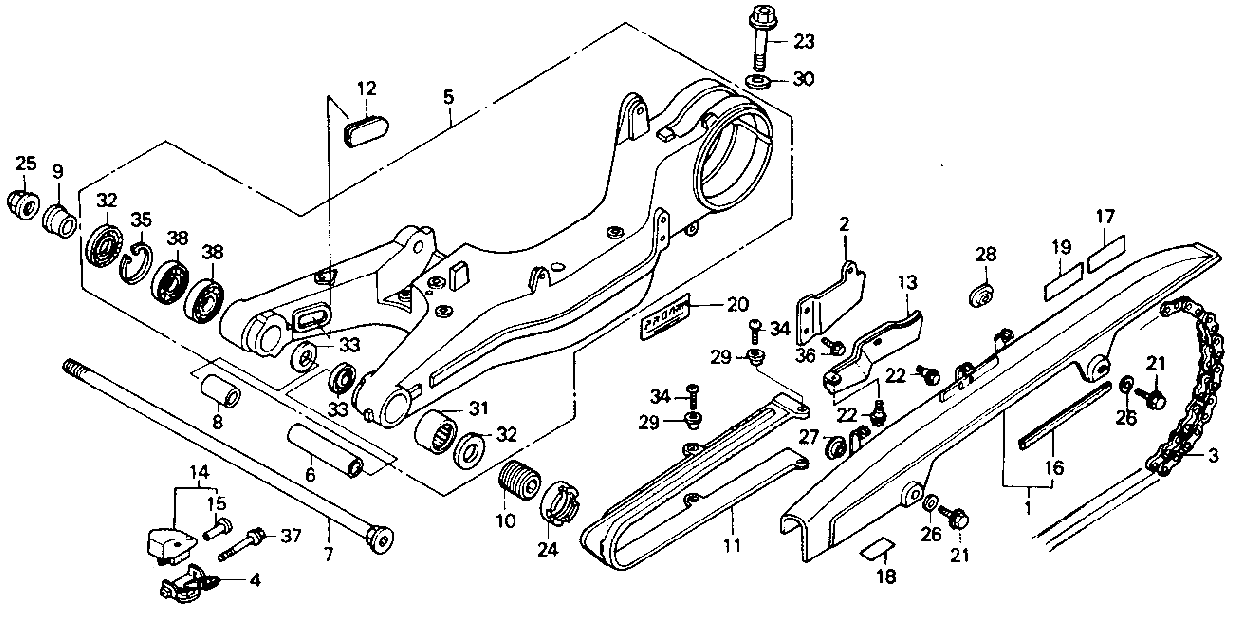

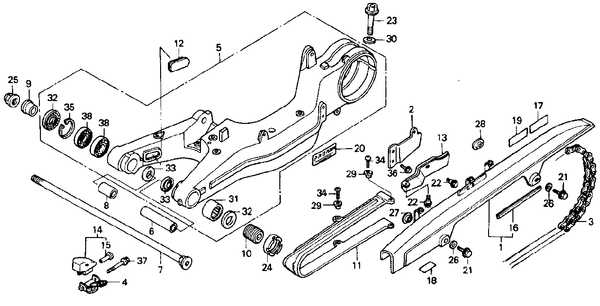

| no. | description | part number | 2003 price | notes |
|---|---|---|---|---|
| 1 | CASE, DRIVE CHAIN | 40510-MN8-000 | $42.68 | |
| 2 | GUARD, SPROCKET | 40515-MN8-000 | $17.60 | |
| 3 | CHAIN (525V 7-112) | 40530-MN8-003 | $122.08 | 525 width |
| 3 | CHAIN, DRIVE | 40530-MN8-005 | $122.08 | 112 links |
| 4 | STAY, CHAIN SLIDER | 50536-MN8-010 | $7.57 | |
| 5 | SWINGARM ASSY., RR. | 52100-MN8-670 | $691.51 | |
| 6 | COLLAR A | 52101-MM2-670 | $12.14 | |
| 7 | BOLT, SWINGARM PIVOT | 52101-MN8-000 | $33.03 | |
| 8 | COLLAR C | 52104-MN8-000 | $7.29 | |
| 9 | COLLAR B, RR. | 52105-KM4-000 | $11.80 | |
| 10 | BOLT | 52109-KT7-010 | $11.35 | |
| 11 | SLIDER, CHAIN | 52170-MN8-000 | $26.20 | |
| 12 | GROMMET, SWINGARM | 52175-MN8-000 | $6.97 | |
| 13 | PLATE | 52180-MN8-000 | $13.92 | |
| 14 | SLIDER, CHAIN | 52181-MN8-003 | $12.66 | |
| 15 | COLLAR | 53209-HA0-000 | $3.45 | |
| 16 | RUBBER, CHAIN CASE | 64121-ML0-730 | $5.91 | |
| 17 | MARK, TIRE CAUTION | 87505-MN8-670 | $3.14 | |
| 18 | LABEL, RESERVE TANK | 87507-MB4-670 | $2.03 | |
| 19 | MARK | 87507-MN8-670 | $2.89 | |
| 20 | LABEL, SWINGARM | 87521-ML0-731 | $4.71 | |
| 21 | BOLT, FLANGE (6X16) | 90106-MJ1-000 | $1.86 | |
| 22 | BOLT, FLANGE (6MM) | 90111-162-000 | $1.86 | |
| 23 | BOLT, FLANGE (16X51) | 90155-MR7-000 | $14.15 | |
| 24 | NUT, LOCK (26X1.5) | 90301-KT7-000 | $6.57 | |
| 25 | NUT, U (14MM) | 90305-GE8-003 | $3.35 | |
| 26 | WASHER (6MM) | 90485-MB2-000 | $1.32 | |
| 27 | WASHER | 90512-422-000 | $1.68 | |
| 28 | WASHER (6X9) | 90513-405-000 | $0.88 | |
| 29 | WASHER, CHAIN SLIDER | 90556-KR3-000 | $1.62 | |
| 30 | WASHER, PLAIN (16MM) | 90559-HA8-000 | $3.42 | |
| 31 | BEARING, NEEDLE | 91071-MJ0-003 | $20.09 | |
| 32 | DUST SEAL (22X35X7) | 91213-MB2-003 | $4.23 | |
| 33 | DUST SEAL (22X29X4) | 91283-ML7-003 | $4.29 | |
| 34 | SCREW, PAN (5X12) | 93500-05012-0G | $0.34 | |
| 35 | CIRCLIP (35MM) | 94520-35000 | $0.82 | |
| 36 | BOLT, FLANGE (6X16) | 96001-06016-02 | $0.82 | |
| 37 | BOLT, FLANGE (6X40) | 96001-06040-00 | $0.86 | |
| 38 | BEARING (6202) | 96100-62020-10 | $7.14 |
