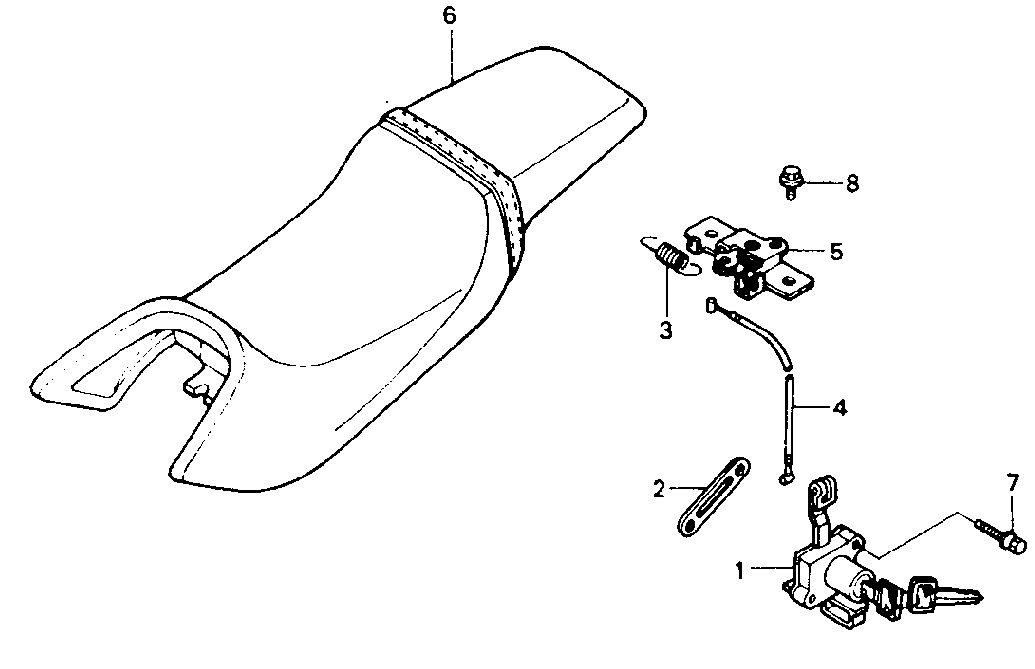

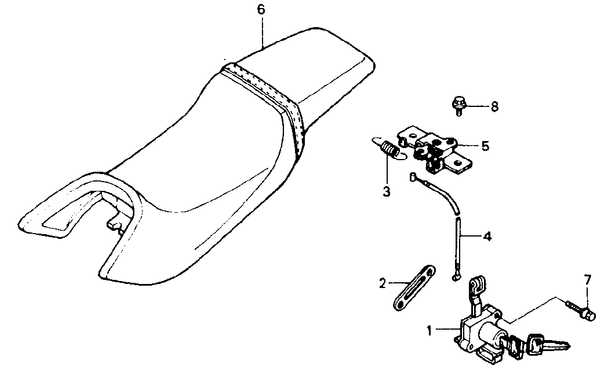

| no. | description | part number | 2003 price | notes |
|---|---|---|---|---|
| 1 | LOCK ASSY., SEAT | 77110-MN8-700 | $43.28 | |
| 2 | PLATE | 77112-ML7-000 | $4.06 | |
| 3 | SPRING, SEAT LOCK | 77151-MB1-870 | $3.35 | |
| 4 | CABLE, SEAT LOCK | 77156-MN8-000 | $4.80 | |
| 5 | BRACKET, SEAT LOCK | 77160-KV0-010 | $10.49 | |
| 6 | SEAT, DOUBLE *NH1L* | 77200-MN8-670ZA | $239.86 | |
| 7 | BOLT (6MM) | 90008-MB6-630 | $3.42 | |
| 8 | BOLT, FLANGE (6X10) | 95701-06010-00 | $0.57 |
The data was scraped from The Internet in 2003.
The useful data has been corrected and updated where possible.
We have made no effort to keep pricing up-to-date.
