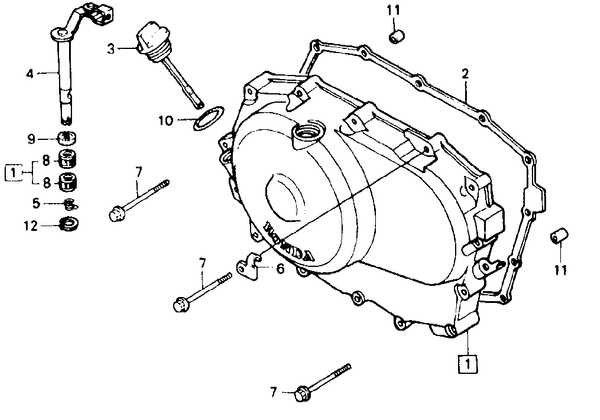

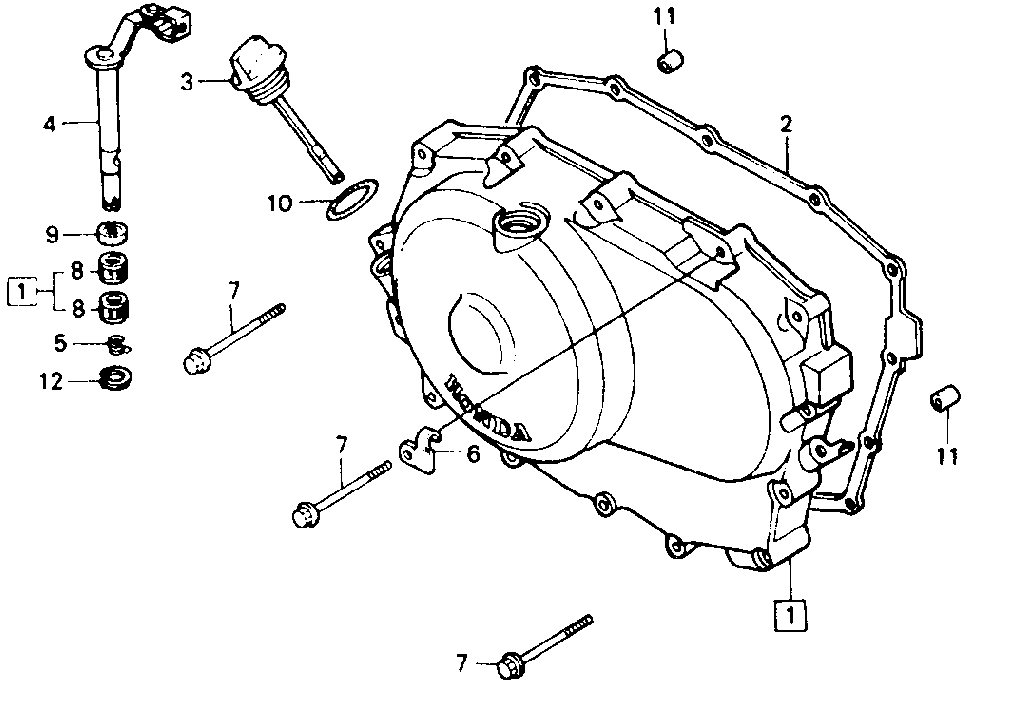

no. | description | part number | 2003 price | notes |
---|---|---|---|---|
1 | COVER, R. CRANKCASE | 11330-MN8-000 | $155.62 | |
2 | GASKET, R. | 11394-MV1-850 | $10.40 | |
3 | DIPSTICK, OIL | 15650-MN8-000 | $12.32 | |
4 | LEVER COMP., CLUTCH | 22810-MR1-000 | $32.89 | |
5 | SPRING, CLUTCH LEVER | 22815-413-000 | $1.78 | |
6 | RECEIVER | 22825-MR1-000 | $3.31 | |
7 | BOLT, FLANGE (6X35) | 90003-MR1-000 | $2.29 | |
8 | BEARING (12X16X10) | 91053-719-003 | $4.71 | |
9 | OIL SEAL (12X20X5) | 91205-KF0-003 | $2.51 | |
10 | O-RING (22X3.0) | 91307-425-003 | $1.18 | |
11 | PIN, DOWEL (8X14) | 94301-08140 | $0.85 | |
12 | CIRCLIP (10MM) | 94510-10000 | $0.45 |
The data was scraped from The Internet in 2003.
The useful data has been corrected and updated where possible.
We have made no effort to keep pricing up-to-date.
