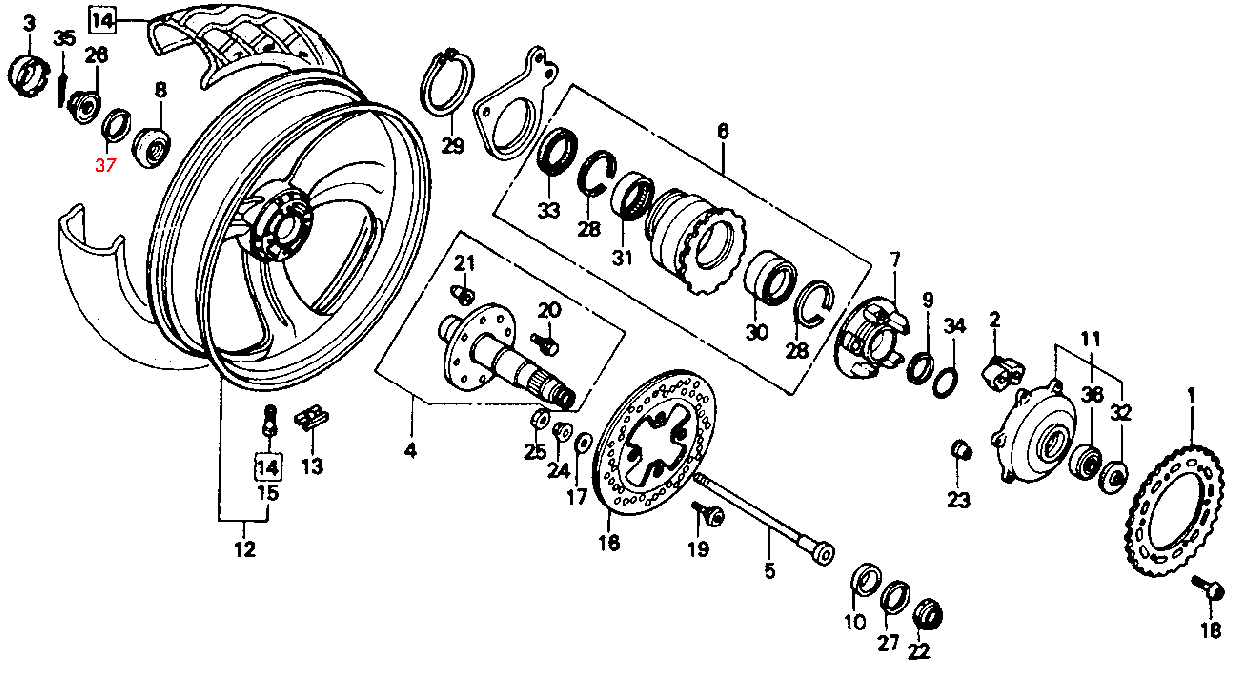

| no. | description | part number | 2003 price | notes |
|---|---|---|---|---|
| 1 | SPROCKET (44T) | 41201-MN8-670 | $46.61 | 525 width |
| 2 | DAMPER, FINAL DRIVEN | 41241-MN8-003 | $5.54 | |
| 3 | CAP, RR. | 42110-MN8-000 | $9.92 | |
| 4 | AXLE COMP., RR. | 42300-MN8-000 | $145.46 | |
| 5 | BOLT, RR. AXLE | 42302-MN8-020 | $35.46 | |
| 6 | HOLDER, BEARING | 42500-MN8-000 | $129.86 | |
| 7 | FLANGE, FINAL DRIVEN | 42605-MN8-000 | $97.71 | |
| 8 | SPACER, CENTER LOCK | 42607-MN8-000 | $20.18 | |
| 9 | COLLAR, RR. | 42621-MN8-000 | $12.72 | |
| 10 | COLR, RR. AXLE SIDE | 42622-MN8-000 | $11.20 | |
| 11 | HUB COMP., SPROCKET | 42630-MN8-010 | $138.23 | |
| 12 | WHEEL SET, RR. | 42650-MN8-670 | $562.14 | |
| 13 | WEIGHT (10G) | 42704-MB0-000 | $7.43 | |
| 13 | WEIGHT (20G) | 42705-MB0-000 | $7.43 | |
| 13 | WEIGHT (30G) | 42706-MB0-000 | $7.43 | |
| 14 | TIRE (150/70-17) | 42710-MN8-003 | $107.15 | more info |
| 14 | TIRE (150/70-17) | 42710-MN8-004 | $107.15 | more info |
| 15 | VALVE, RIM | 42753-ML7-003 | $6.95 | |
| 15 | VALVE, RIM | 42753-ML7-004 | $6.95 | |
| 16 | DISK, RR. BRAKE | 43351-ML0-730 | $240.69 | |
| 17 | SHIM, DAMPING | 45128-ME2-003 | $2.09 | |
| 18 | BOLT | 90103-MN8-000 | $4.42 | |
| 19 | BOLT, RR. (8X22) | 90105-ML0-730 | $3.42 | |
| 20 | BOLT, DRIVE PIN | 90113-MR7-000 | $2.40 | |
| 21 | PIN, DRIVE | 90114-MR7-000 | $5.83 | |
| 22 | NUT, LOCK (35MM) | 90306-MZ7-000 | $8.37 | replaces: 90306-MN8-000 more info |
| 23 | NUT, SPECIAL (8MM) | 90308-MN8-000 | $2.80 | |
| 24 | NUT, FLANGE (8MM) | 90309-KF0-003 | $2.80 | |
| 25 | NUT, HEX. (8MM) | 90310-MN8-000 | $1.22 | |
| 26 | NUT, RR. AXLE | 90316-MN8-010 | $21.85 | 27mm socket |
| 27 | WASHER (35) | 90501-MN8-000 | $11.31 | |
| 28 | CIRCLIP (62MM) | 90651-ML0-731 | $3.06 | |
| 29 | CIRCLIP (75MM) | 90652-ML0-731 | $5.40 | |
| 30 | BEARING (6908LU) | 91061-ML0-731 | $25.92 | |
| 31 | BEARING, RR. | 91062-MR7-003 | $23.12 | |
| 32 | DUST SEAL (50X62X5) | 91252-MN8-003 | $6.97 | |
| 33 | DUST SEAL (50X62X5) | 91284-MR7-003 | $6.97 | |
| 34 | O-RING, SPROCKET HUB | 91352-MN8-003 | $1.34 | |
| 35 | PIN, COTTER (2.5MM) | 94201-25400 | $0.48 | |
| 36 | BEARING (6007) | 96150-60070-10 | $16.14 | |
| 37 | Rear axle washer | 90656-MR7-000 | $ | wheel nut anti-gall washer, part number from VFR400 suspected accurate as of 10/2023, not verified |
The data was scraped from The Internet in 2003.
The useful data has been corrected and updated where possible.
We have made no effort to keep pricing up-to-date.
