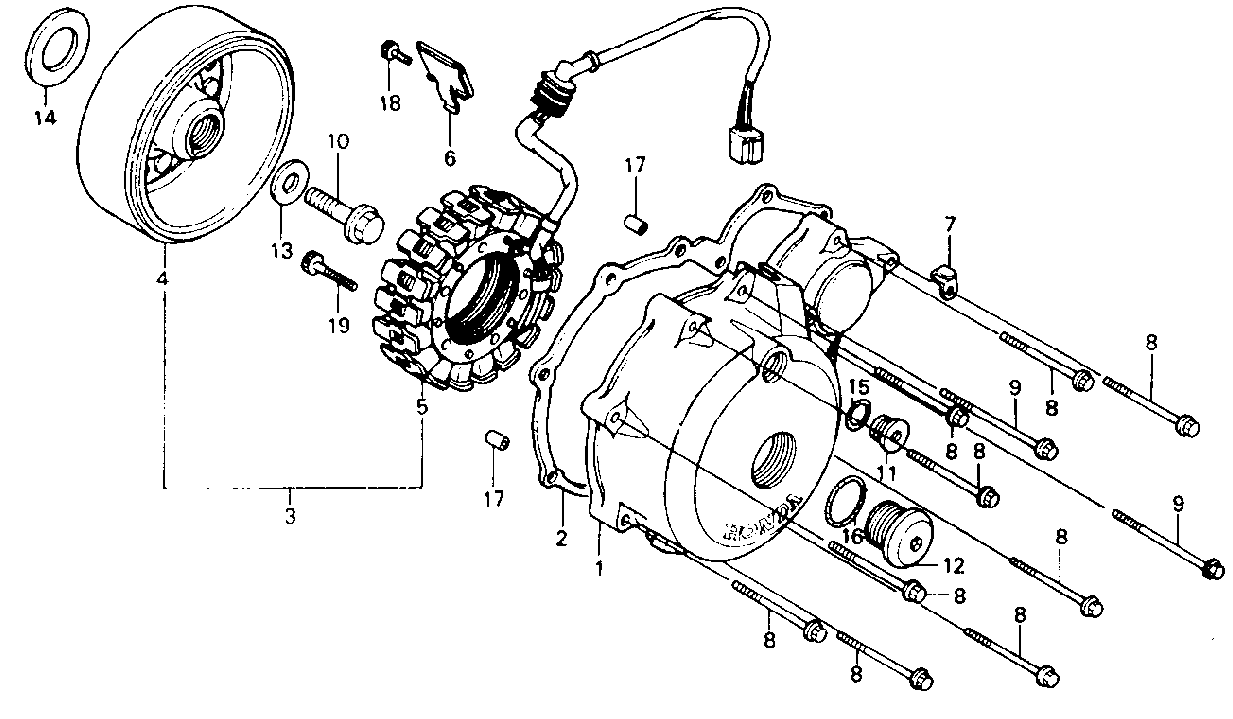

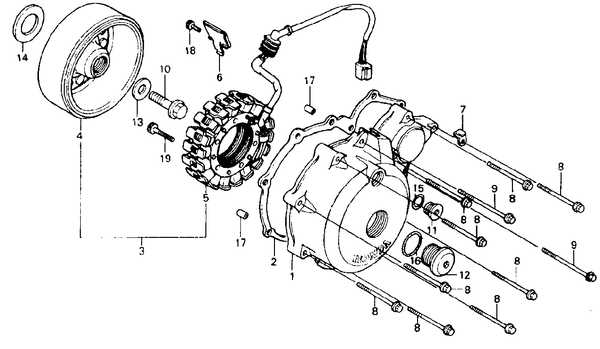

| no. | description | part number | 2003 price | notes |
|---|---|---|---|---|
| 1 | COVER, L. CRANKCASE | 11341-MN8-010 | $117.80 | |
| 2 | GASKET, L. | 11395-MR1-000 | $4.48 | |
| 3 | ALTERNATOR ASSY. | 31100-MN8-004 | $518.02 | |
| 4 | FLYWHEEL COMP. | 31110-MN8-004 | $328.54 | |
| 5 | STATOR COMP. | 31120-MN8-004 | $274.05 | |
| 6 | CLAMP | 32961-MF5-000 | $4.66 | |
| 7 | CLIP | 32972-KG0-000 | $2.29 | |
| 8 | BOLT, FLANGE (6X35) | 90003-MR1-000 | $2.29 | |
| 9 | BOLT, FLANGE (6X45) | 90004-MR1-000 | $2.40 | |
| 10 | BOLT, FLANGE (12X48) | 90025-MN8-000 | $7.08 | |
| 11 | CAP (14MM) | 90084-MN8-010 | $6.98 | |
| 12 | CAP (30MM) | 90087-MR1-000 | $10.83 | |
| 13 | WASHER (12.5X34X5) | 90402-PC6-000 | $8.26 | |
| 14 | WASHER (30X50X1) | 90453-MN8-750 | $3.42 | |
| 15 | O-RING (13.8X2.5) | 91303-377-000 | $2.48 | |
| 16 | O-RING (29.7X2.4) | 91356-425-005 | $2.02 | |
| 17 | PIN, DOWEL (8X14) | 94301-08140 | $0.85 | |
| 18 | BOLT, SOCKET (6X12) | 96700-06012-00 | $0.62 | |
| 19 | BOLT, SOCKET (6X32) | 96700-06032-00 | $0.88 |
The data was scraped from The Internet in 2003.
The useful data has been corrected and updated where possible.
We have made no effort to keep pricing up-to-date.
