1988-91 Honda Hawk GT partsfiche

Back to the parts fiche

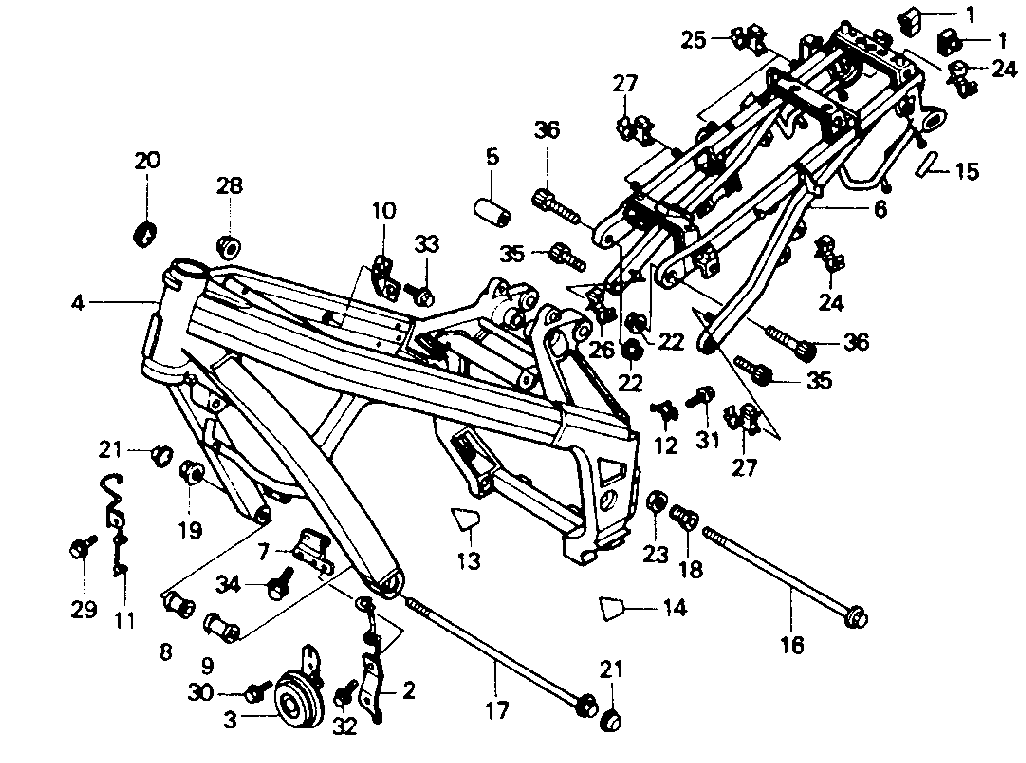

frame

no.descriptionpart number2003 pricenotes
1 GROMMET, CABLE 32985-422-000 $1.51
2 STAY, HORN 38111-MN8-670 $5.15
3 HORN COMP. (LOW) 38120-MN8-671 $36.74
4 FRAME COMP. 50100-MN8-010 $1,221.12
5 TUBE, FRAME 50157-MN8-000 $1.68
6 RAIL COMP., SEAT 50240-MN8-670 $438.28
7 PLATE, FR. ENG HGR 50355-MN8-000 $11.32
8 COLLAR, R. FR. 50361-MN8-000 $8.71
9 COLLAR, L. FR. 50362-MN8-000 $8.71
10 STAY A, CONNECTOR 50364-MN8-000 $5.80
11 GUIDE, CLUTCH CABLE 50731-MN8-000 $7.69
12 GUIDE, CABLE 50734-MN8-000 $2.57
13 EMBLEM, R. FRAME 87125-MN8-670 $5.31
14 EMBLEM, L. FRAME 87126-MN8-670 $5.31
15 LABEL, HELMET HOLDER 87511-KR3-670 $1.68
16 BOLT, FLG (10X260) 90101-KE8-000 $7.08
16 BOLT, FLG (10X250) 90117-KW3-000 $8.40
17 BOLT (10X270) 90102-MN8-000 $9.91
18 BOLT, ENGINE HANGER 90104-MN8-000 $10.83
19 NUT, FLANGE (10MM) 90204-MA5-700 $2.02
20 CAP, PIVOT 90302-MN8-000 $7.29
21 CAP, FR. JOINT 90303-MN8-000 $5.83
22 NUT, U (10MM) 90304-GE8-003 $2.65
23 NUT, RR. (22MM) 90308-ML7-000 $6.98
24 CLIP, CABLE (8MM) 90690-GHB-631 $1.43
25 CLIP, CABLE (10MM) 90690-GHB-641 $1.43
26 CLIP, CABLE (15MM) 90690-GHB-651 $1.43
27 CLIP, CABLE (20MM) 90690-GHB-661 $1.43
28 NUT, FLANGE (10MM) 94050-10000 $0.74
29 BOLT, FLANGE (6X12) 95701-06012-00 $0.54
30 BOLT, FLANGE (6X12) 95701-06012-07 $0.49
31 BOLT, FLANGE (6X14) 95701-06014-00 $0.54
32 BOLT, FLANGE (6X14) 95701-06014-07 $0.43
33 BOLT, FLANGE (6X18) 95701-06018-08 $0.52
34 BOLT, FLANGE (8X22) 95701-08022-07 $0.82
35 BOLT, SOCKET (10X25) 96700-10025-00 $1.17
36 BOLT, SOCKET (10X40) 96700-10040-00 $1.17

Note on pricing:

The data was scraped from The Internet in 2003.
The useful data has been corrected and updated where possible.
We have made no effort to keep pricing up-to-date.
