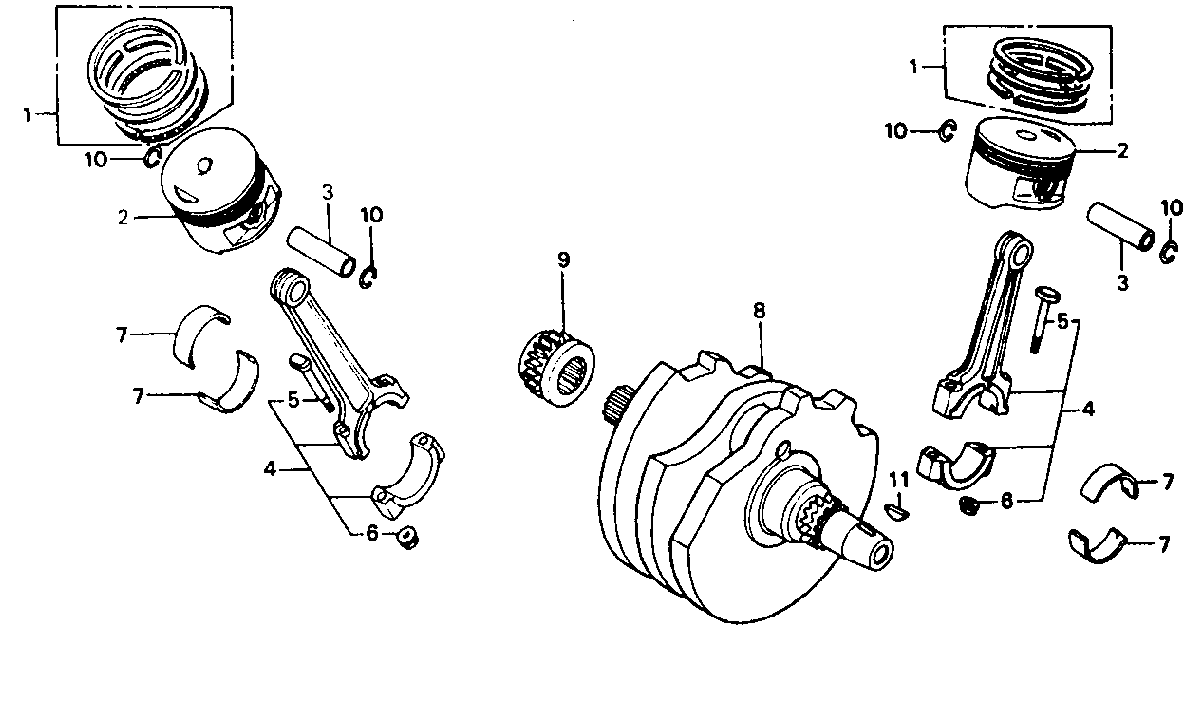

| no. | description | part number | 2003 price | notes |
|---|---|---|---|---|
| 1 | RING SET (STD) | 13011-MN8-305 | $38.95 | |
| 1 | RING SET (OS 0.25) | 13012-MN8-305 | $38.95 | |
| 1 | RING SET (OS 0.50) | 13013-MN8-305 | $38.95 | |
| 2 | PISTON (STD) | 13101-MN8-000 | $61.65 | |
| 2 | PISTON (OS 0.25) | 13102-MN8-305 | $61.65 | |
| 2 | PISTON (OS 0.50) | 13103-MN8-305 | $61.65 | |
| 3 | PIN, PISTON | 13111-ME9-000 | $16.34 | |
| 4 | ROD A, CONNECTING | 13201-MN8-000 | $122.88 | |
| 4 | ROD B, CONNECTING | 13202-MN8-000 | $122.88 | |
| 4 | ROD C, CONNECTING | 13203-MN8-000 | $122.88 | |
| 4 | ROD D, CONNECTING | 13204-MN8-000 | $122.88 | |
| 5 | BOLT, CONNECTING ROD | 13213-463-003 | $5.75 | |
| 5 | BOLT, CONNECTING ROD | 13213-463-004 | $5.75 | |
| 6 | NUT, CONNECTING ROD | 13215-ML7-000 | $2.20 | |
| 7 | BEARING A, CONN ROD | 13216-MF5-004 | $10.40 | |
| 7 | BEARING B, CONN ROD | 13217-MF5-004 | $9.34 | |
| 7 | BEARING C, CONN ROD | 13218-MF5-003 | $9.34 | |
| 8 | CRANKSHAFT COMP. | 13300-MN8-000 | $465.60 | |
| 9 | SPROCKET (20T) | 14311-MR1-000 | $41.03 | |
| 10 | CLIP (1.2X20) | 90601-KA5-000 | $0.92 | |
| 11 | KEY (25X14) | 90741-413-000 | $1.31 |
The data was scraped from The Internet in 2003.
The useful data has been corrected and updated where possible.
We have made no effort to keep pricing up-to-date.
