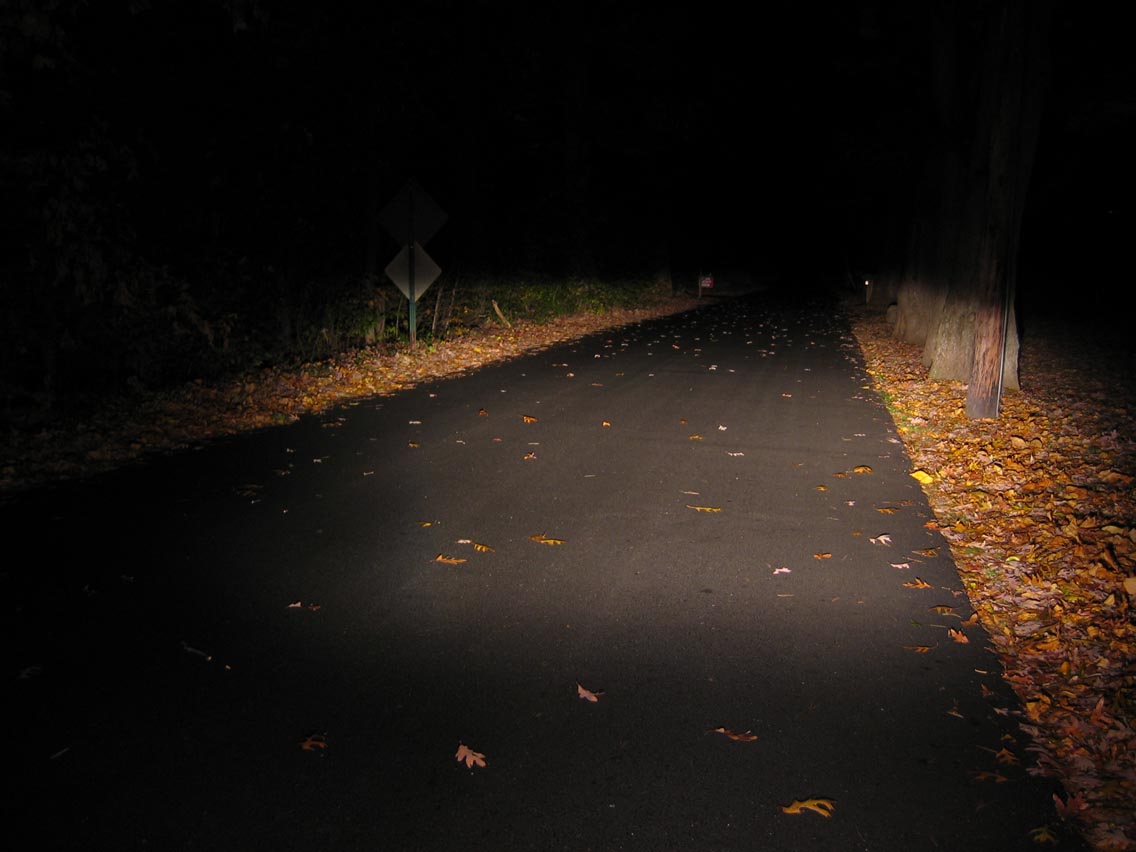

Low beam only

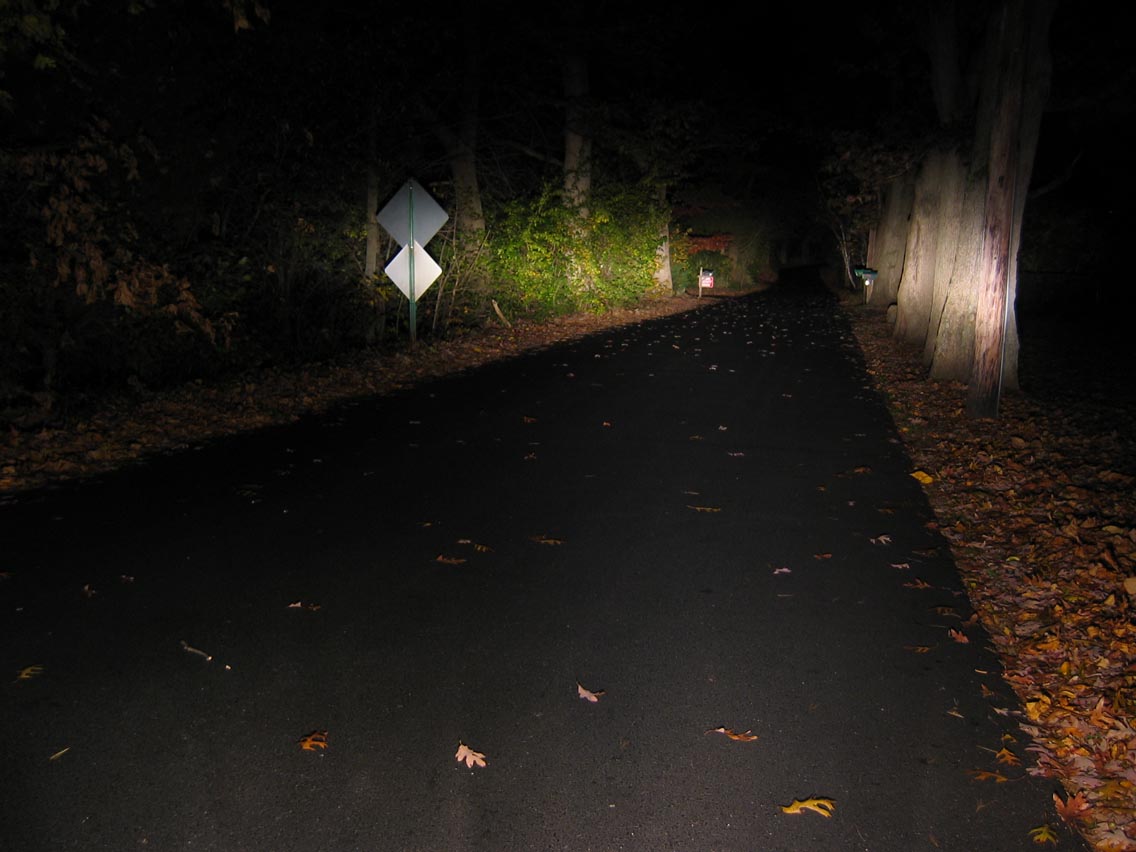

High beam only

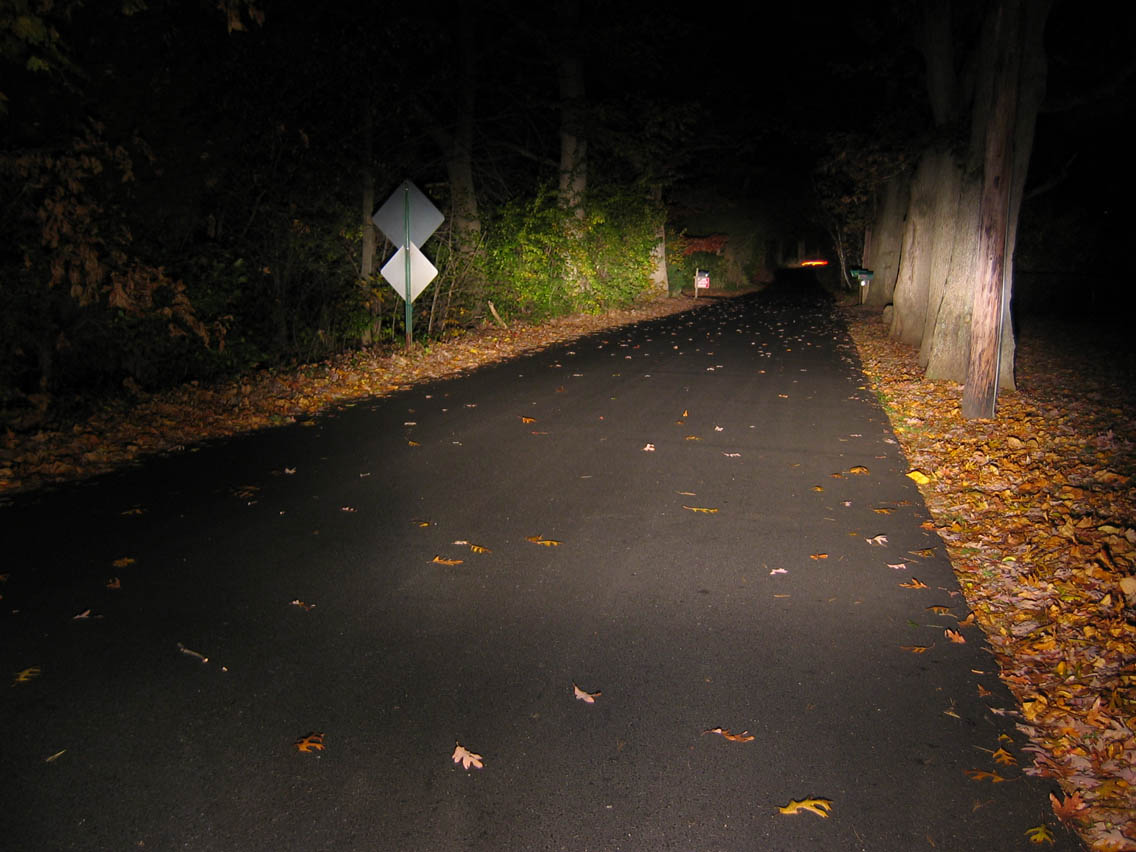

High and low

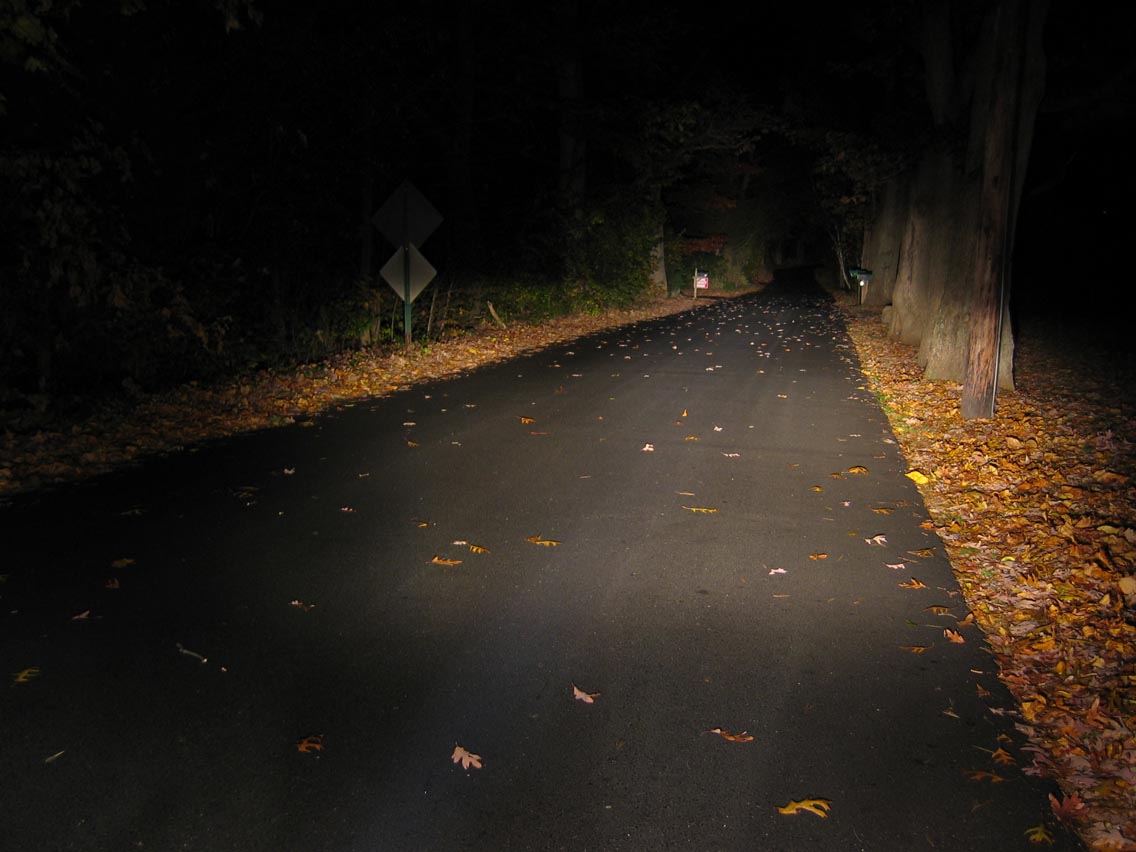

Low and FF50 Driving

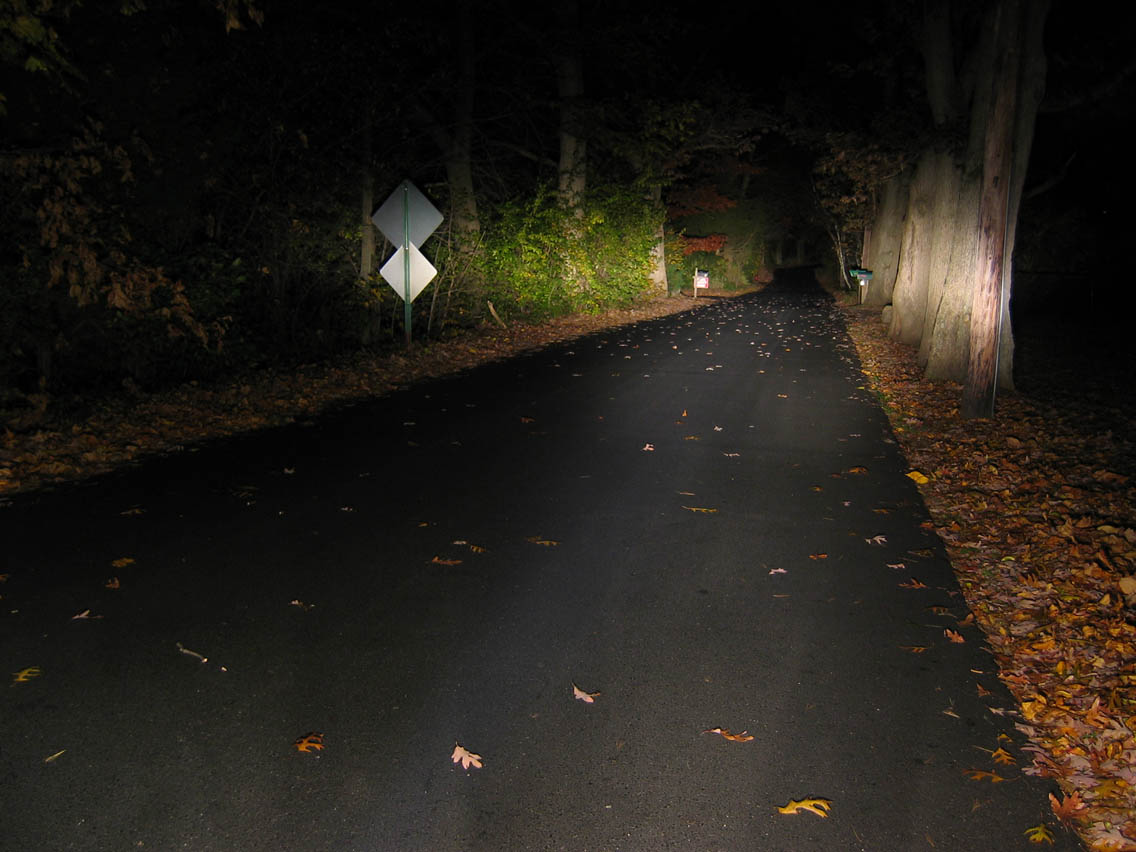

High and FF50 Driving

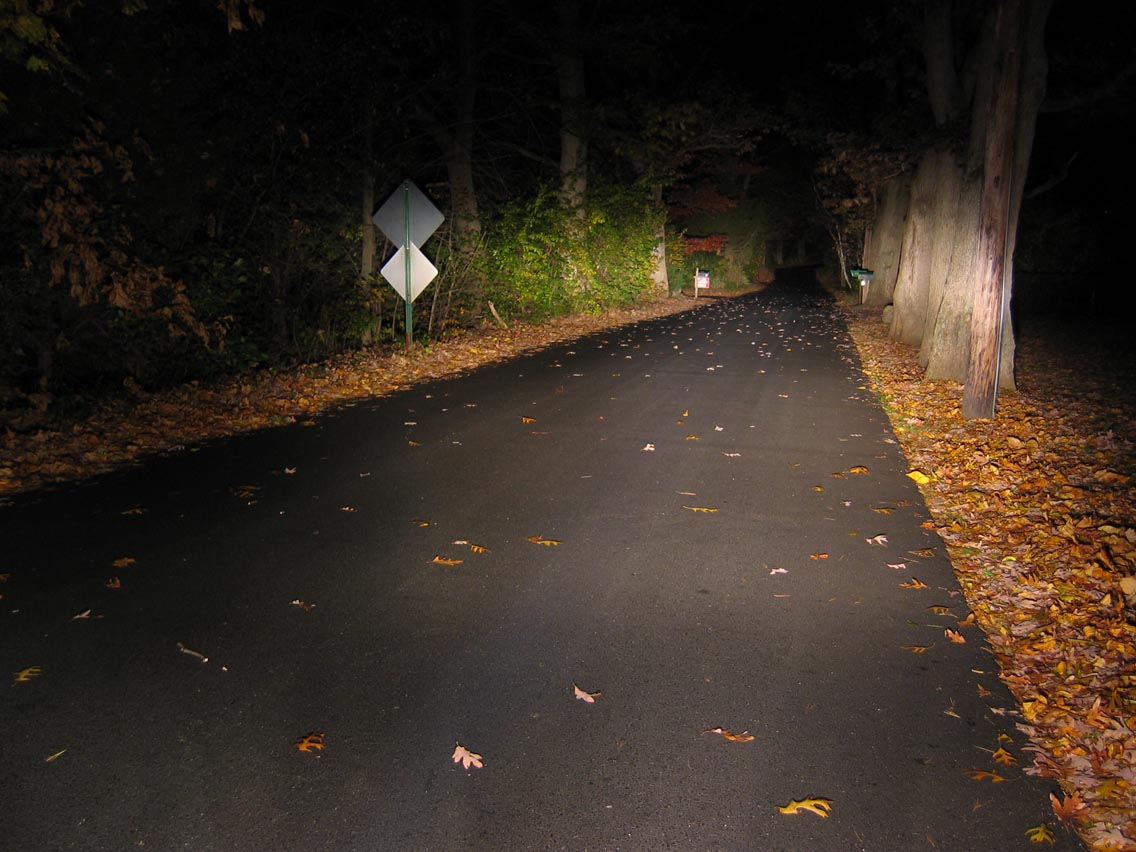

High, low, and FF50 driving

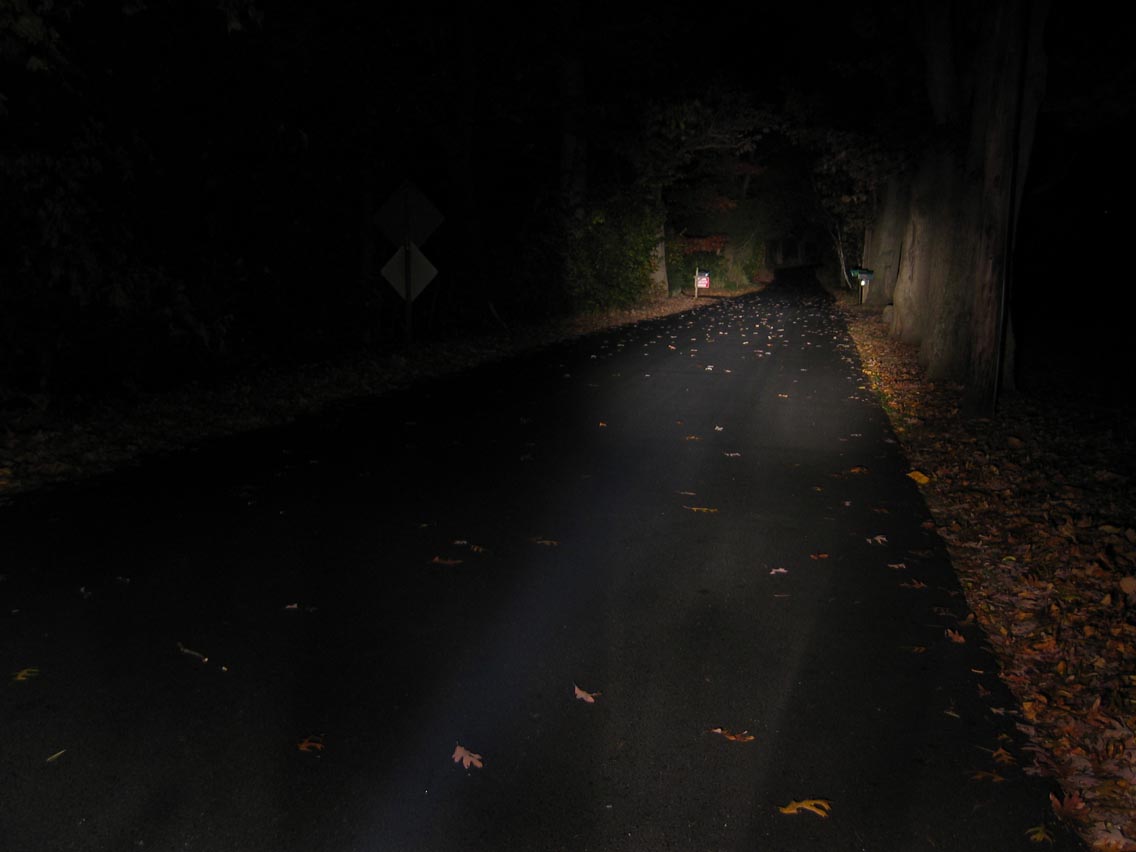

FF50 Driving only
All of these pictures were taken with a Canon A80 on "manual", ASA set to 50, 2.5 second exposure, and F-stop set to 2.8. I used a tripod sitting on the triple clamp and tank to keep the camera steady. The engine was off.
Do not assume that these are as bright or as dim as they will appear to you, since your eyes are different, and this was a long exposure. Use these photos for comparison/relative brightness and beam pattern only.
Low beam only | High beam only | High and low |
Low and FF50 Driving | High and FF50 Driving | High, low, and FF50 driving |
FF50 Driving only |
